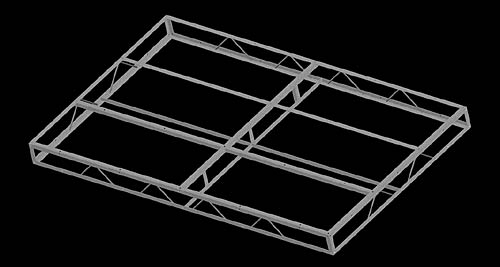

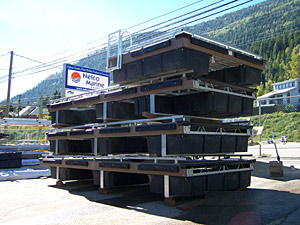

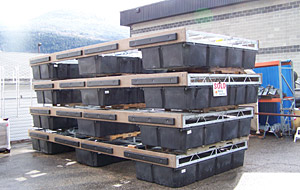

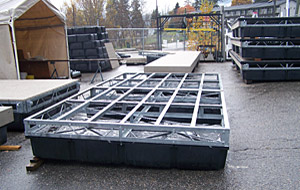

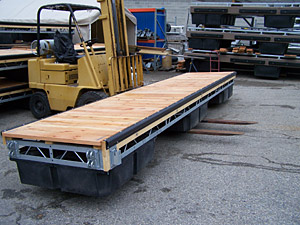

STEEL TRUSS FRAMES
 |
|
- Standard construction is 1 ½” x 1 ½” x 3/16” angle and ½” round bar.
- Frames can be made for either 15", 16", 18" or 24" on center.
- Hot-dipped galvanized after welding.
- Our frames are 10’ in length and 8” high and come in 2’, 3’, 4’, 5’, 6’, and 8' widths.
- Special custom sizes are also available.
1 ½” Angle Steel Truss Frames
- ST-210 2’ x 10’
- ST-310 3’ x 10’
- ST-410 4’ x 10’
- ST-510 5’ x 10’
- ST-610 6’ x 10’
- ST-810 8’ x 10’
|
2” Angle Steel Truss Frames
- ST-2102 2’ x 10’
- ST-3102 3’ x 10’
- ST-4102 4’ x 10’
- ST-5102 5’ x 10’
- ST-6102 6’ x 10’
- ST-8102 8’ x 10’
|
Steel Truss Accessories

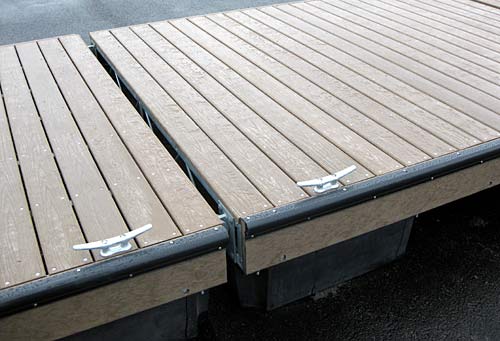

To create a hinge between frames use:
(Click on images to enlarge)
|

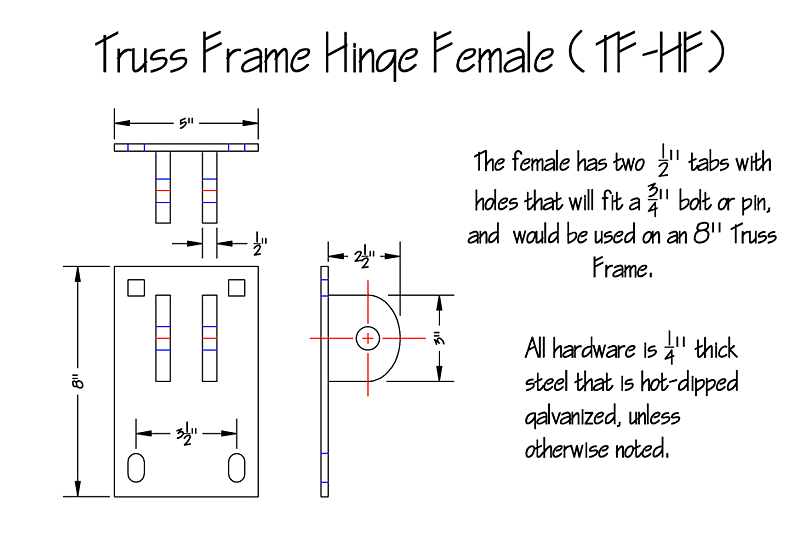

ST-HF
|

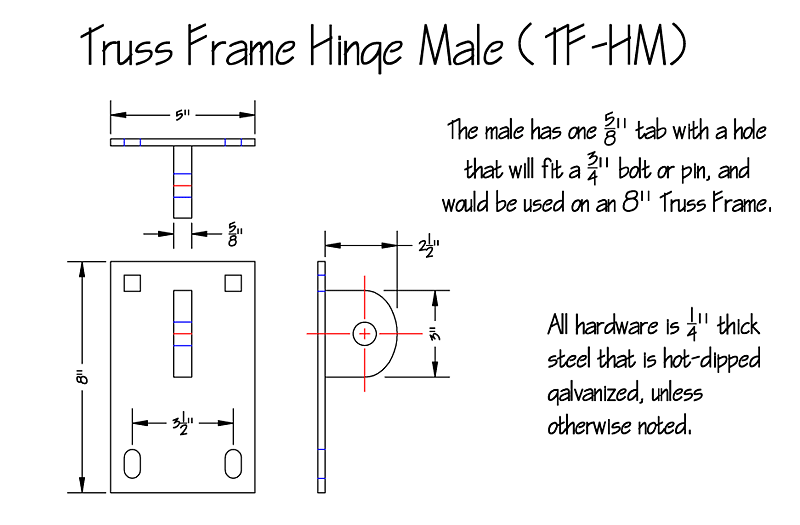

ST-HM
|
Or for a non-articulating double tab connection, use the following:
(Click on images to enlarge)
|

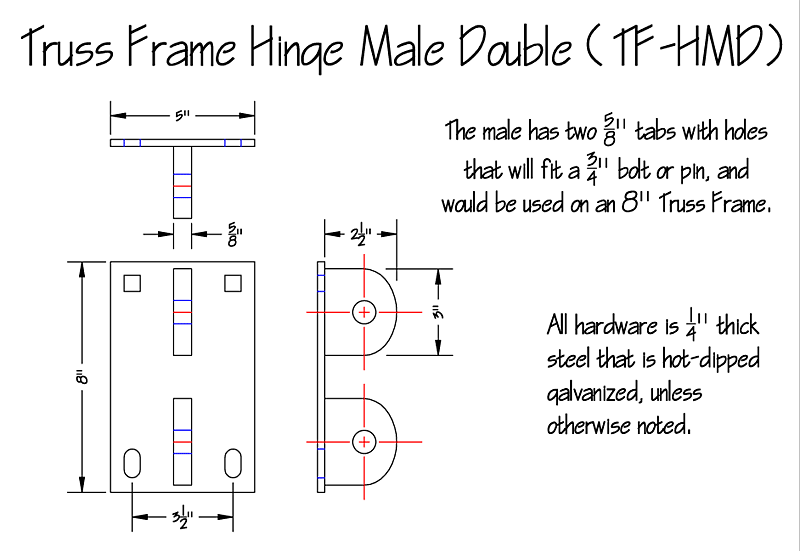

ST-HMD
|

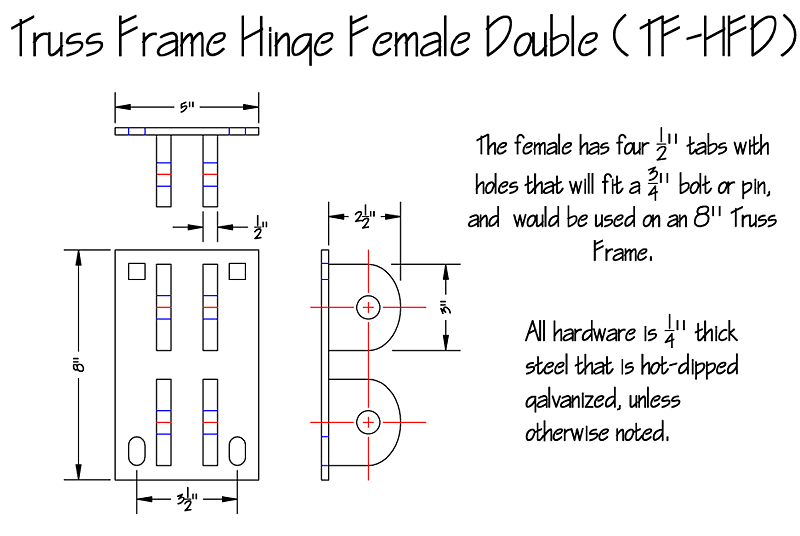

ST-HFD
|
|
|
|
|
