WOOD DOCK PLAN KITS
 |

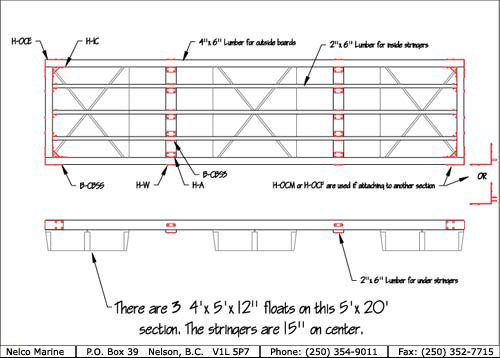

5-x-20 Wood Dock Plan Kit - 15" on Center |
 Dock Details
|
Parts List
|
5' x 20' Dock Kit - 15" on Center (Floats & Hardware)
|
|
Quantity
|
Part #
|
Description
|
|
3
|
4860-12
|
48" x 60" x 12" Float Drum
|
|
4
|
WH-OCE
|
1/4" Galv. Outside Corner End
|
|
4
|
WH-IC
|
1/4" Galv. Inside Corner
|
|
16
|
WH-A
|
1/4" Galv. Angle
|
|
32
|
WH-W
|
1/4" Galv. Washer Plate
|
|
20
|
F-LSS-4
|
3/8" x 4" Lag Bolt Set (Bolt & 2 Flat Washers)
|
|
44
|
F-CBS-3
|
1/2" x 3" Carriage Bolt Set (Bolt, Washer, Nut)
|
|
52
|
F-CBS-5
|
1/2" x 5" Carriage Bolt Set (Bolt, Washer, Nut)
|
|
|
|
|
